NuStair Stair Parts: Fittings



RO – Red Oak

P2 – Primed

BC – Brazilian Cherry

M – Maple

C – American Cherry

MG – Mahogany

P – Poplar

WO – White Oak



All Dimensions based on 7000 Series Fittings


7008 7009

7008

RO, M, C, BC

7508

RO, M, C

7208

RO, M

7708

RO, M, C

Coped End

7009

RO, M, C, BC

7509

RO, M, C, MG, BC, WO

7209

RO, M

7709

RO, M, C, MG

Return End

7010 7010lc

7010

RO, M, C, BC

7510

RO, M, C, MG, BC, WO

7210

RO, M

7710

RO, M, C, MG

Starting Easing w/ Cap

7010 LC

Oak
Starting Easing w/ Large Cap

7011 7011-135

7011

RO, M, C, BC

7511

RO, M, C, MG, BC, WO

7211

RO, M

7711

RO, M, C, MG

Level Quarter Turn

7011-135°

RO, M, C, BC

7511-135°

RO, M, C, MG, BC, WO

7211-135°

RO, M

7711-135°

RO, M, C, MG

Level Quarter Turn 135°

7012 7012l

7012

RO, M, C, BC

7512

RO, M, C, MG, BC, WO

7212

RO, M

7712

RO, M, C, MG

Up Easing



7012 L – 20″

Oak
Up Easing w/ 20″ Extension
One Piece


7013

7013

RO, M, C, BC

7513

RO, M, C, MG, BC, WO

7213

RO, M

7713

RO, M, C, MG

Over Easing





7014 7015

7014

RO, M, C, BC

7514

RO, M, C, MG, BC, WO

7214

RO, M

7714

RO, M, C, MG

90° Up Easing

7015

Oak
Starting Easing w/ Return End



7016

7016

Oak
Over Easing w/ Return End




7016 7019

7019

RO, M, C, BC

7519

RO, M, C, MG, BC, WO

7219

RO, M

7719

RO, M, C, MG

Opening Cap



7019 LC

Large Opening Cap




Tandem Cap

7020

7020

RO, M, C, BC

7520

RO, M, C, MG, BC, WO

7220

RO, M

7720

RO, M, C, MG
  Tandem Cap


7020lc 7021

7020 LC

Oak
Large Tandem Cap

7021

RO, M, C, BC

7521

RO, M, C, MG, BC, WO

7221

RO, M

7721

RO, M, C, MG

Level Quarter Turn w/ Cap

7021lc-135 7021lc

7021-135°

RO, M, C, BC

7521-135°

RO, M, C, MG, BC, WO

7221-135°

RO, M

7721-135°

RO, M, C, MG

Level Quarter Turn w/ 135° Cap



7021 LC

Oak
Level Quarter Turn w/ Large Cap



7021lc-135

7021 LC-135°

Level Quarter Turn w/ 135° Cap




7030-35 7030-35-90

7030/35

RO, M, C, BC

7530/35

RO, M, C, MG, BC, WO

7230/35

RO, M

7730/35

RO, M, C, MG

Left/Right, Volute

7030/35-90

Oak
Volute w/90° Up Easing
Left/Right

7031-36 7040-45

7031/36

RO, M, C, BC

7531/36

RO, M, C, MG, BC, WO

7231/36

RO, M

7731/36

RO, M, C, MG

Left/Right, Climbing Volute

7040/45

RO, M, C, BC

7540/45

RO, M, C, MG, BC, WO

7240/45

RO, M

7740/45

RO, M, C, MG

Left/Right
Turnout

7041-46 7047-48

7041/46

Oak
Small Turnout
Left/Right

7047/48

RO, M, C, BC

7547/48

RO, M, C, MG, BC, WO

7247/48

RO, M

7747/48

RO, M, C, MG

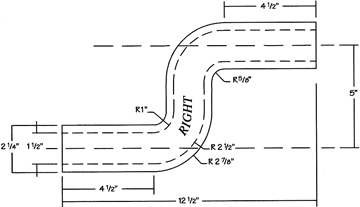

“S”-Turn
Left/Right

7050-55 7060-65

7050/55

Oak
2 Riser Gooseneck w/ Up Easing
Left/Right

7060/65

Oak
2 Riser Gooseneck w/ Cap & Up Easing
Left/Right




7060-65-24



7060/65-24″

Oak
2 Riser Gooseneck w/ Cap, 24″ Drop, & Up Easing
Left/Right




7060-65-135 7070-75

7060/65-135°

Oak
2 Riser Gooseneck w/ 135° Turn, Cap, & Up Easing
Left/Right

7070/75

Oak
2 Riser Gooseneck w/ 135° Turn
Left/Right



7070-75-135



7070/75-135°

Oak
1 Riser Gooseneck w/ 135° Turn
Left/Right


7071-76 7071-76-135

7071/76

RO, M, C, BC

7571/76

RO, M, C, MG, BC, WO

7271/76

RO, M

7771/76

RO, M, C, MG

2 Riser Gooseneck
Left/Right

7071/76-135°

Oak
2 Riser Gooseneck w/ 135° Turn
Left/Right



7080-85



7080/85

Oak
1 Riser Gooseneck w/ Cap
Left/Right


7080-85-135 7081-86

7080/85-135°

Oak
1 Riser Gooseneck w/ 135° Turn & Cap
Left/Right

7081/86

RO, M, C, BC

7581/86

RO, M, C, MG, BC, WO

7281/86

RO, M

7781/86

RO, M, C, MG

2 Riser Gooseneck w/ Cap
Left/Right



7081-86-135




7081/86-135°

Oak
2 Riser Gooseneck w/ 135° Turn & Cap
Left/Right



7088 7089

7088

Oak
1 Riser Gooseneck w/ Tandem Cap



7089

RO, M, C, BC

7589

RO, M, C, MG, BC, WO

7289

RO, M

7789

RO, M, C, MG

2 Riser Gooseneck w/ Tandem Cap



7096




7096

1 Riser Gooseneck w/ Opening Cap



7097 7098

7097

Oak
2 Riser Gooseneck w/ Opening Cap

7098

Straight 1 Riser Gooseneck




7099




7099

RO, M, C, BC

7599

RO, M, C, MG, BC, WO

7299

RO, M

7799

RO, M, C, MG

Straight 2 Riser Gooseneck
